Magnetic Track Lighting

A thin 24 V rail in the ceiling. Spots, linears and pendants snap on by magnet and move whenever the room changes. Two rails: recessed trimless, and ultra-slim surface.

We supply and deliver magnetic track lighting to developers and builders in the Greater Toronto Area and Florida, with sample boards brought to your site.

See the models

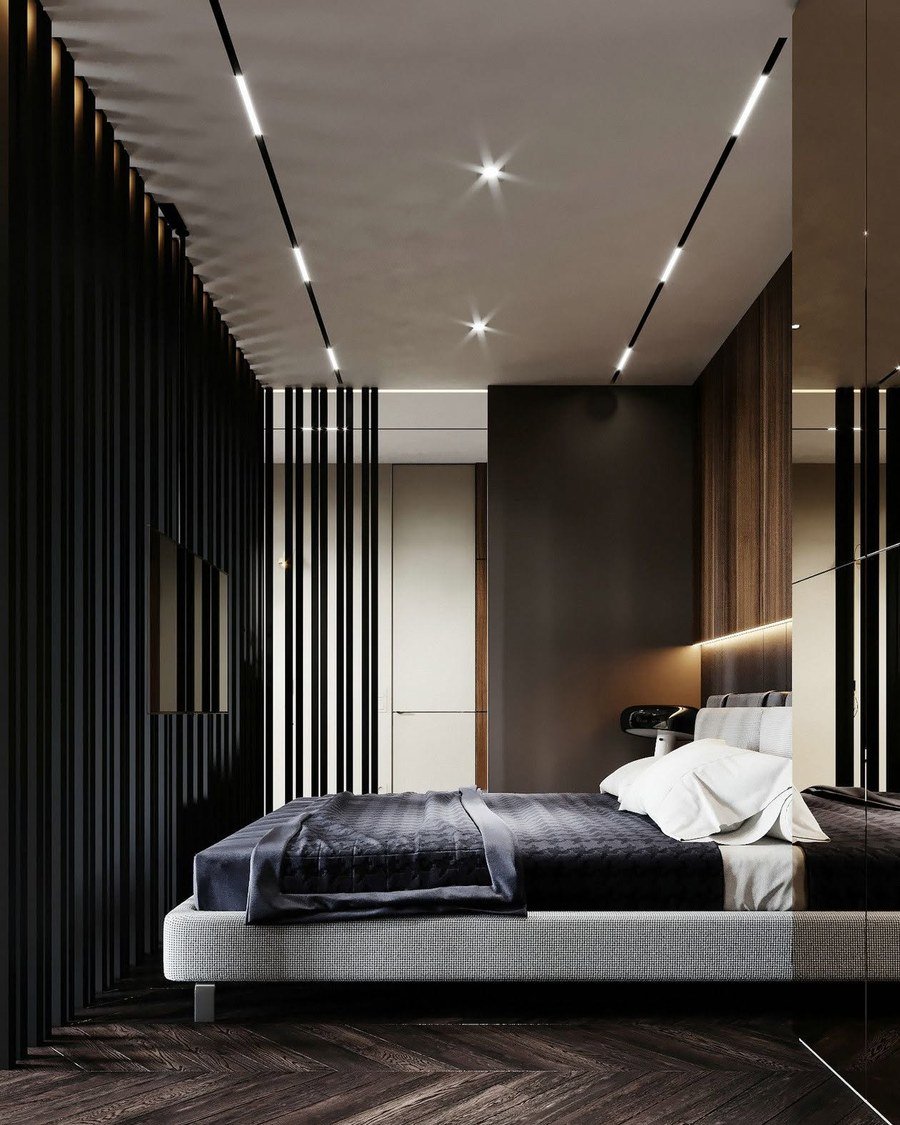

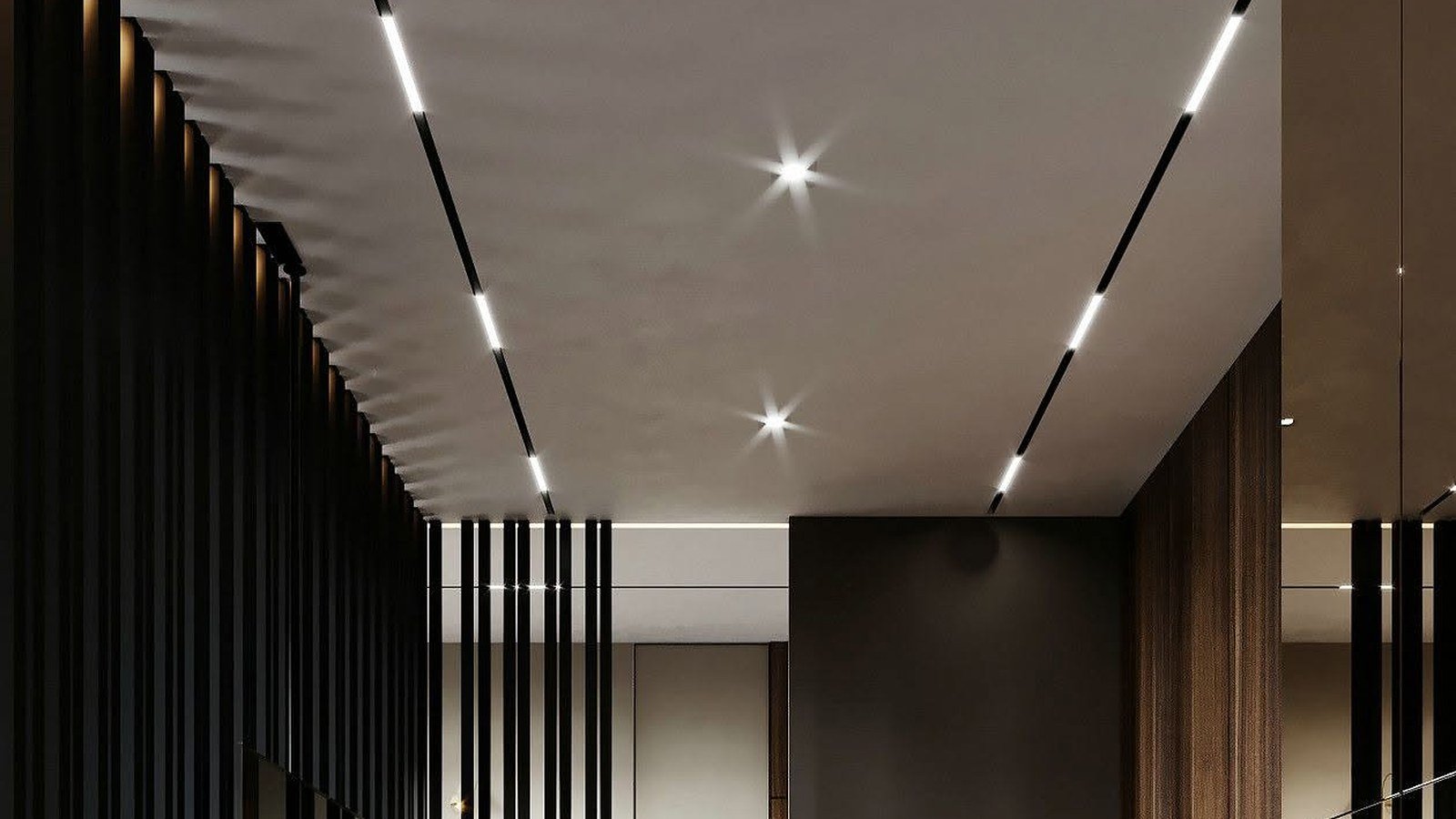

A trimless recessed line of light over a bed in a dark bedroom, with spots on the wardrobe wall
MODELS

Choose a model

Recessed / trimless: the rail disappears into the ceiling

PREMIUM SERIES Plaster-in, no trim, no frame. Only a thin dark line of light remains. The luxury tier.

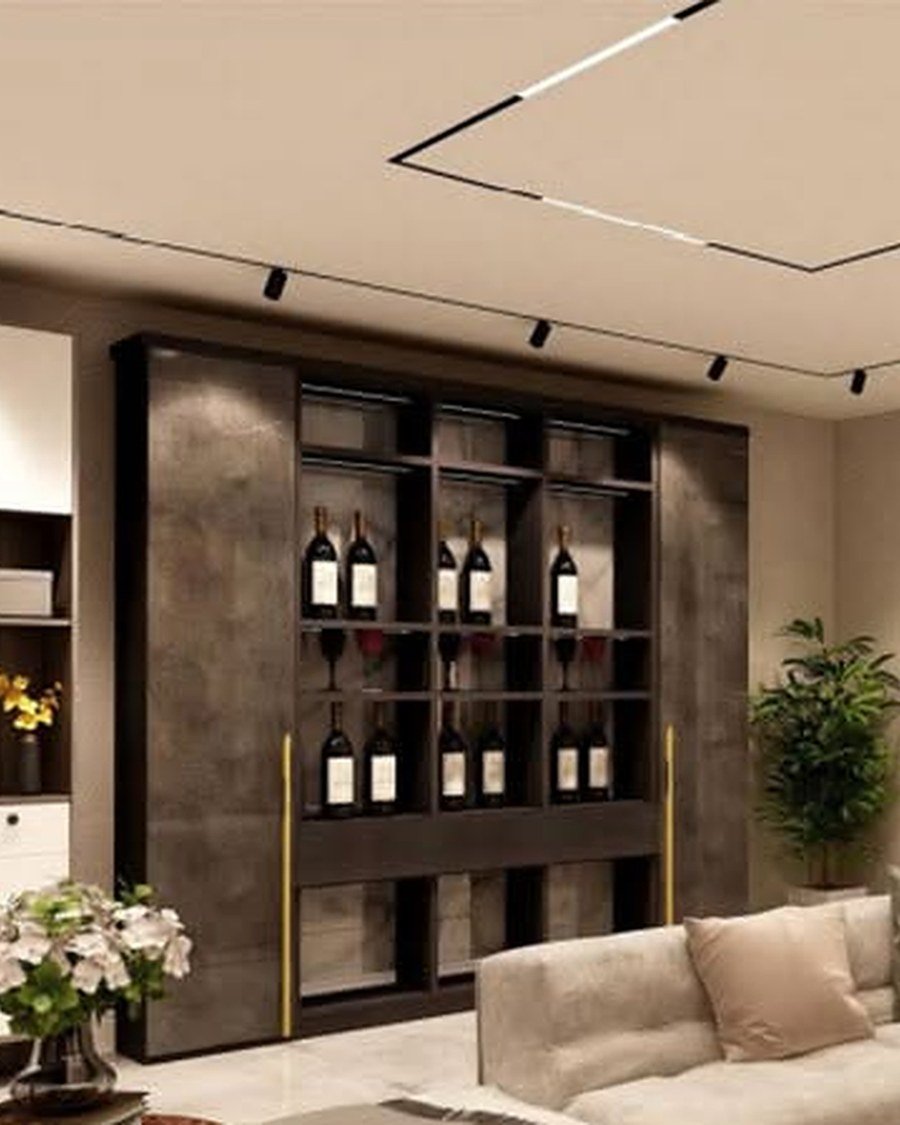

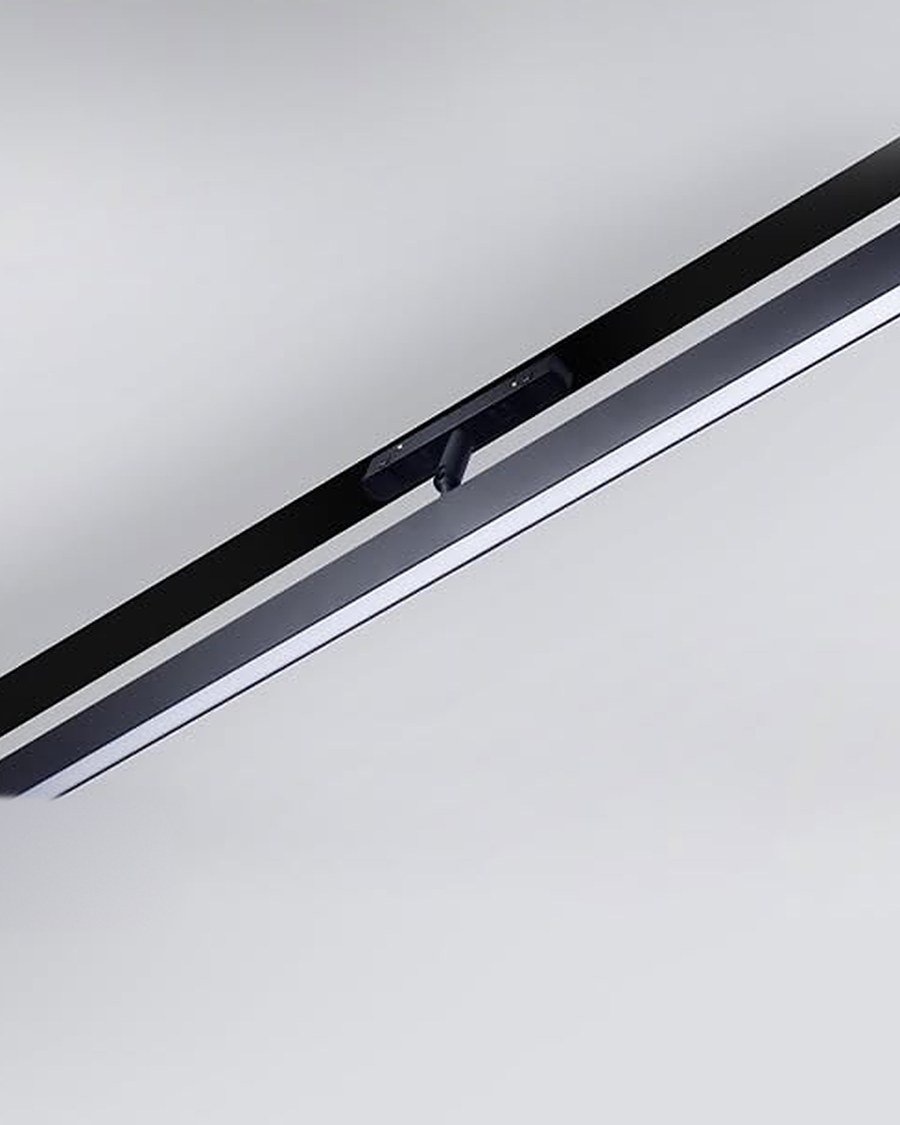

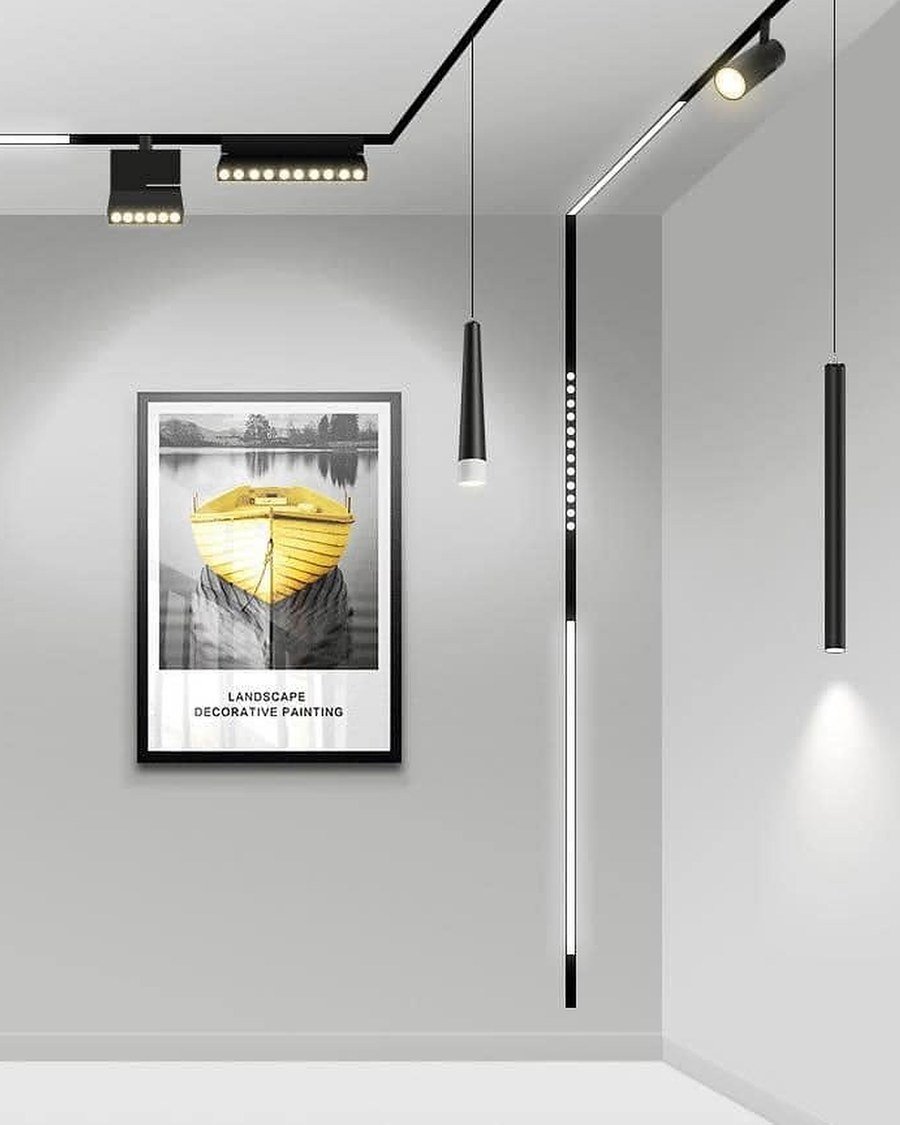

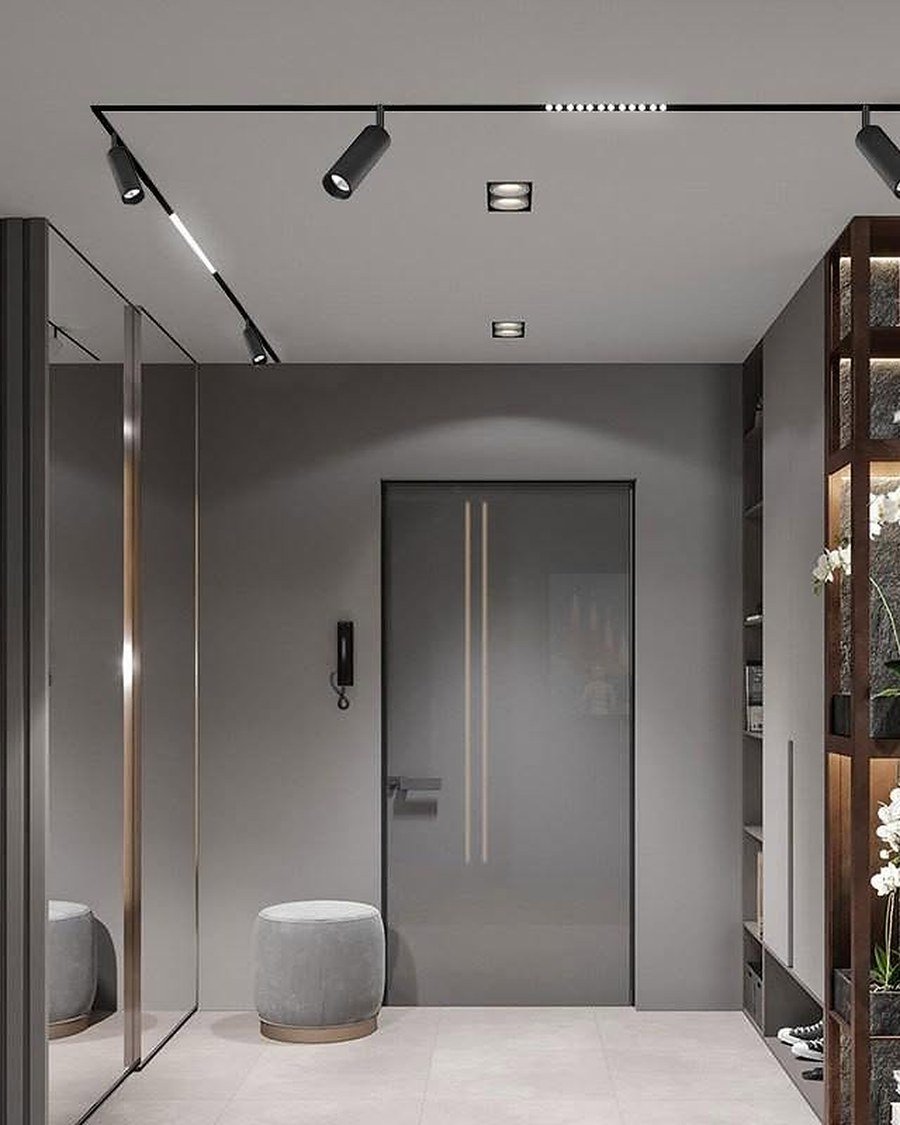

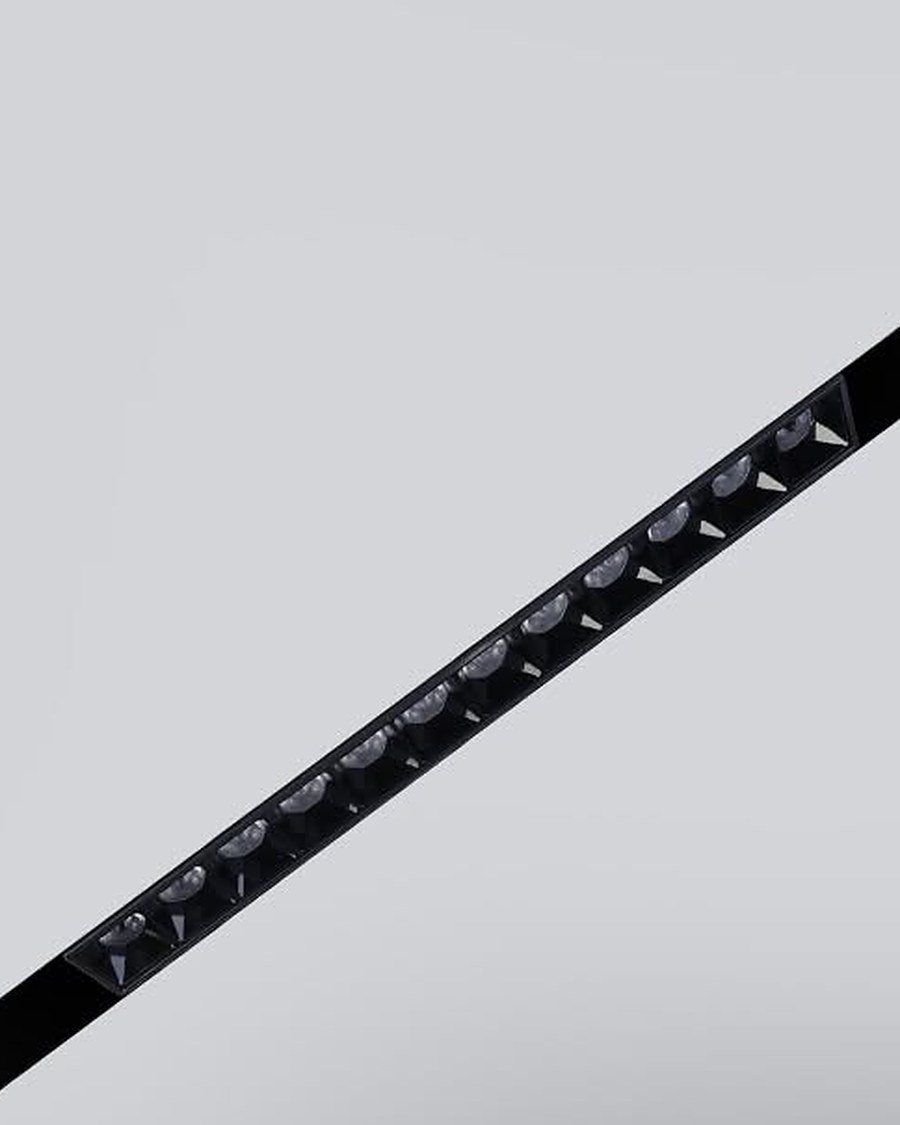

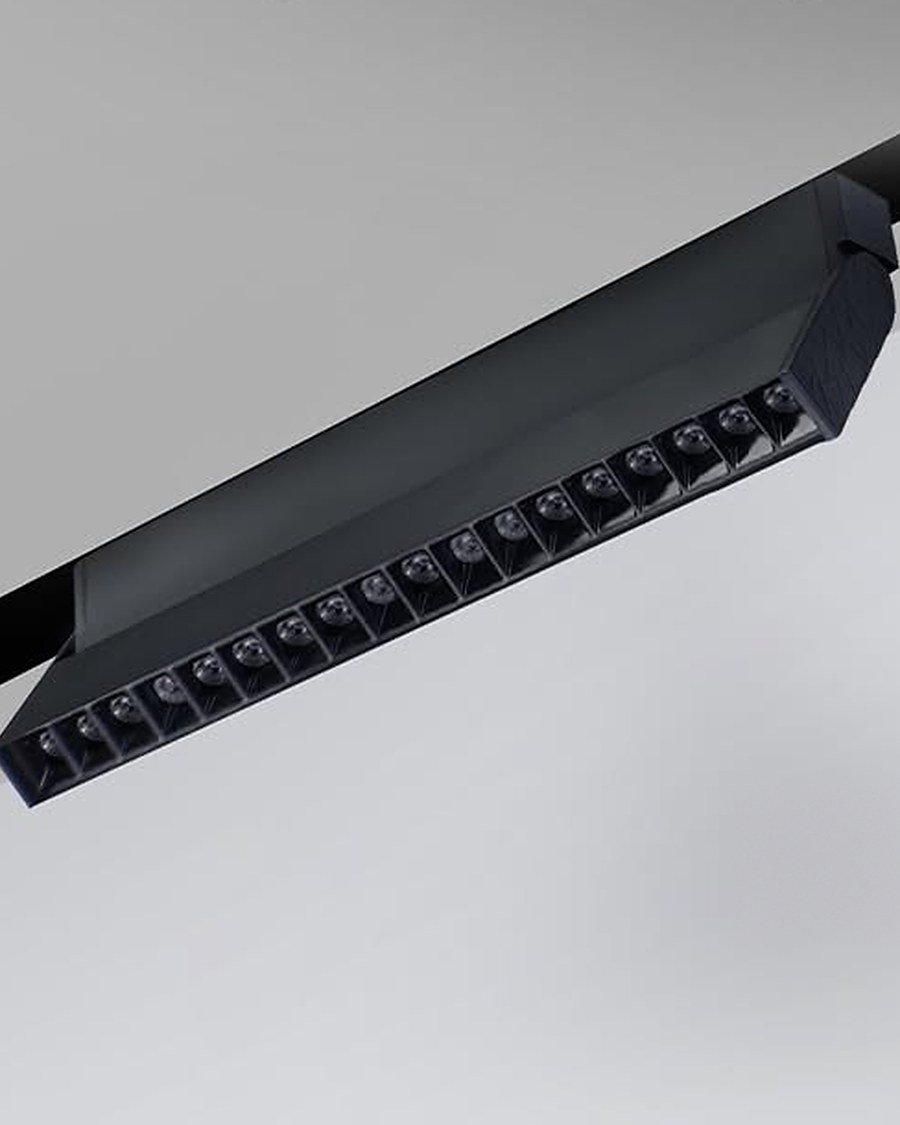

Recessed trimless rail AVH-MT01 THE RAILAVH-MT01 Recessed trimless rail Plaster-in, no trim, no frame. The luxury tier.  Black, white to confirm View model Track spot 80 AVH-MT02 AVH-MT02 Track spot 80 The accent light. Turns 350°, tilts 90°.  White or black View model Mini spot 55 AVH-MT03 AVH-MT03 Mini spot 55 A 55 mm spot for art, shelves and counters.  White or black View model Linear diffuser 257 AVH-MT04 AVH-MT04 Linear diffuser 257 A soft 120° wash. The general light on the rail.  White or black View model Grille linear 131 AVH-MT05 AVH-MT05 Grille linear 131 Narrow lenses: light on the table, not in the eyes.  White or black View model Folding grille 127 AVH-MT06 AVH-MT06 Folding grille 127 On a hinge: flat for the floor, folded to wash a wall.  White or black View model Track pendant 45 AVH-MT07 AVH-MT07 Track pendant 45 Hangs from the rail on an adjustable cable.  White or black View model

Ultra-slim surface: 8 mm on the ceiling

SURFACE SERIES Screws to any finished ceiling. No cut-out, no patching. The same fixtures on top.

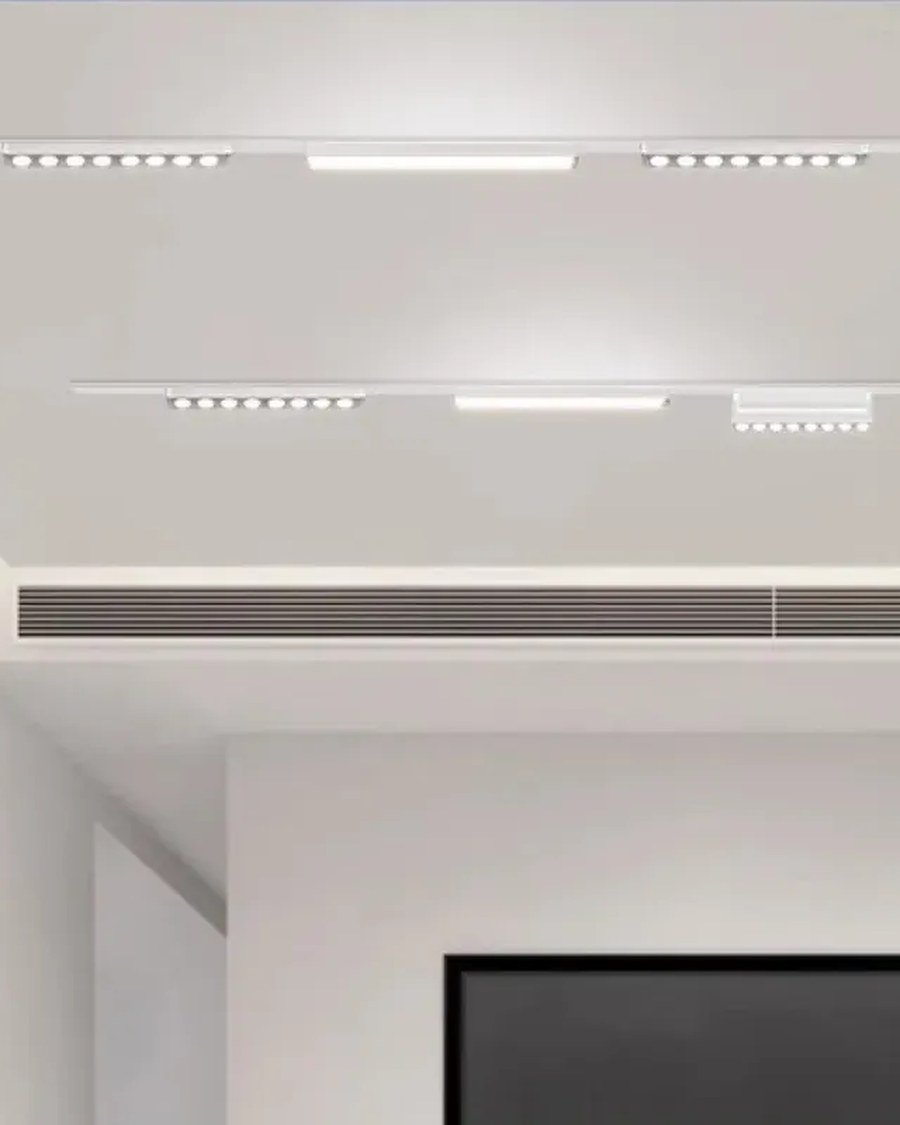

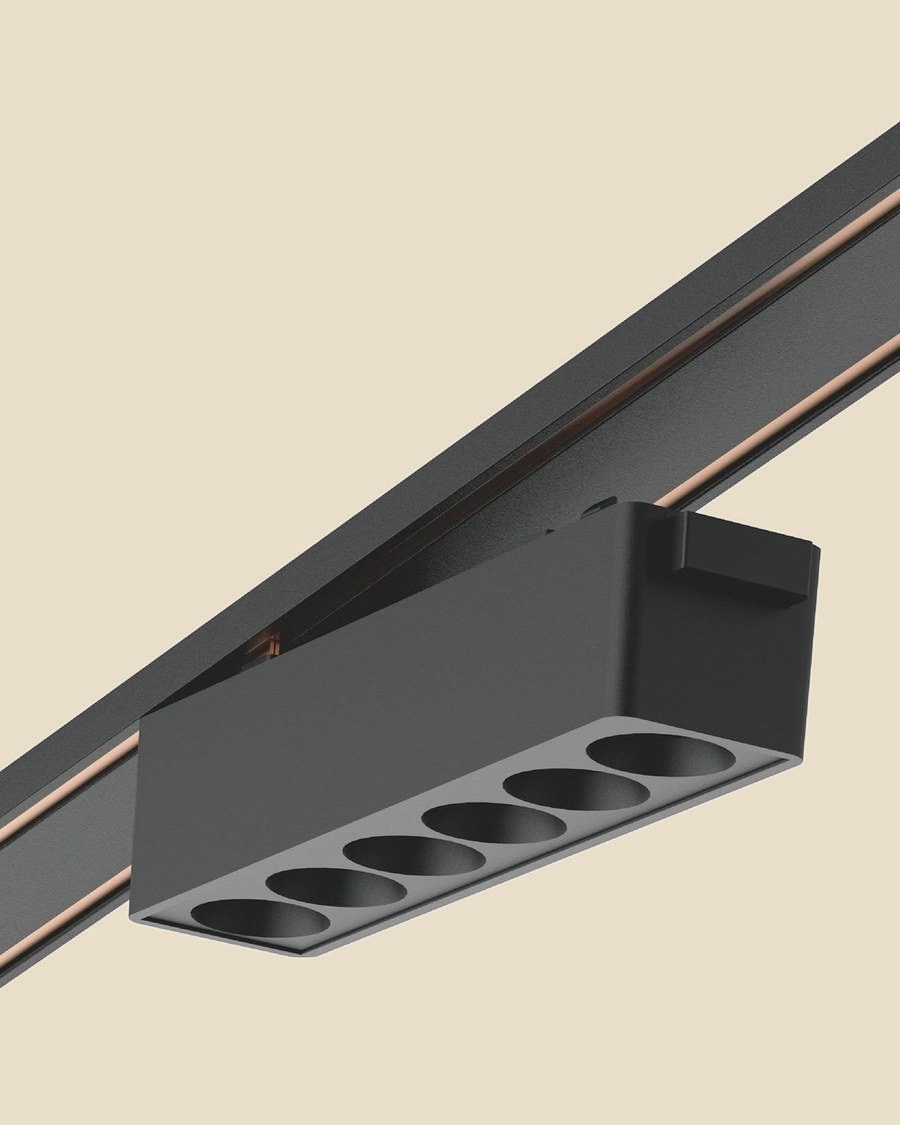

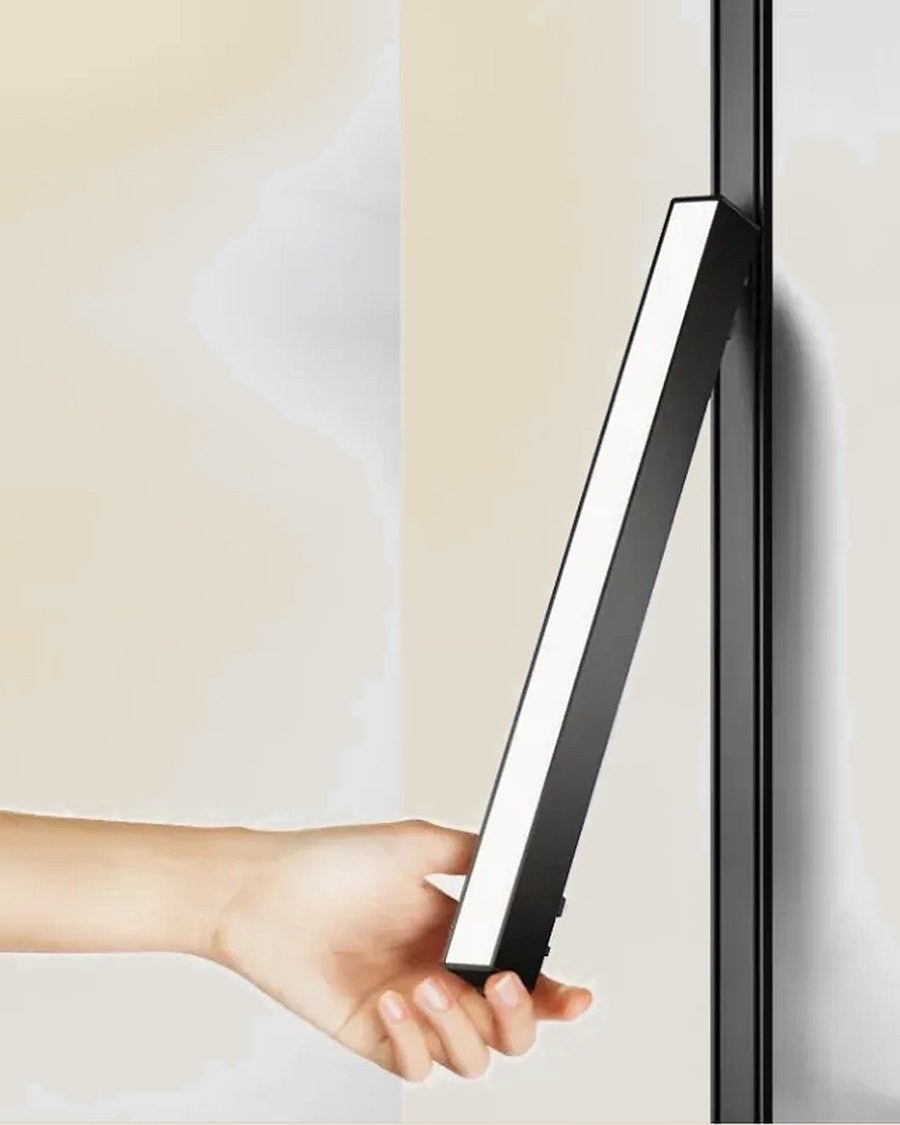

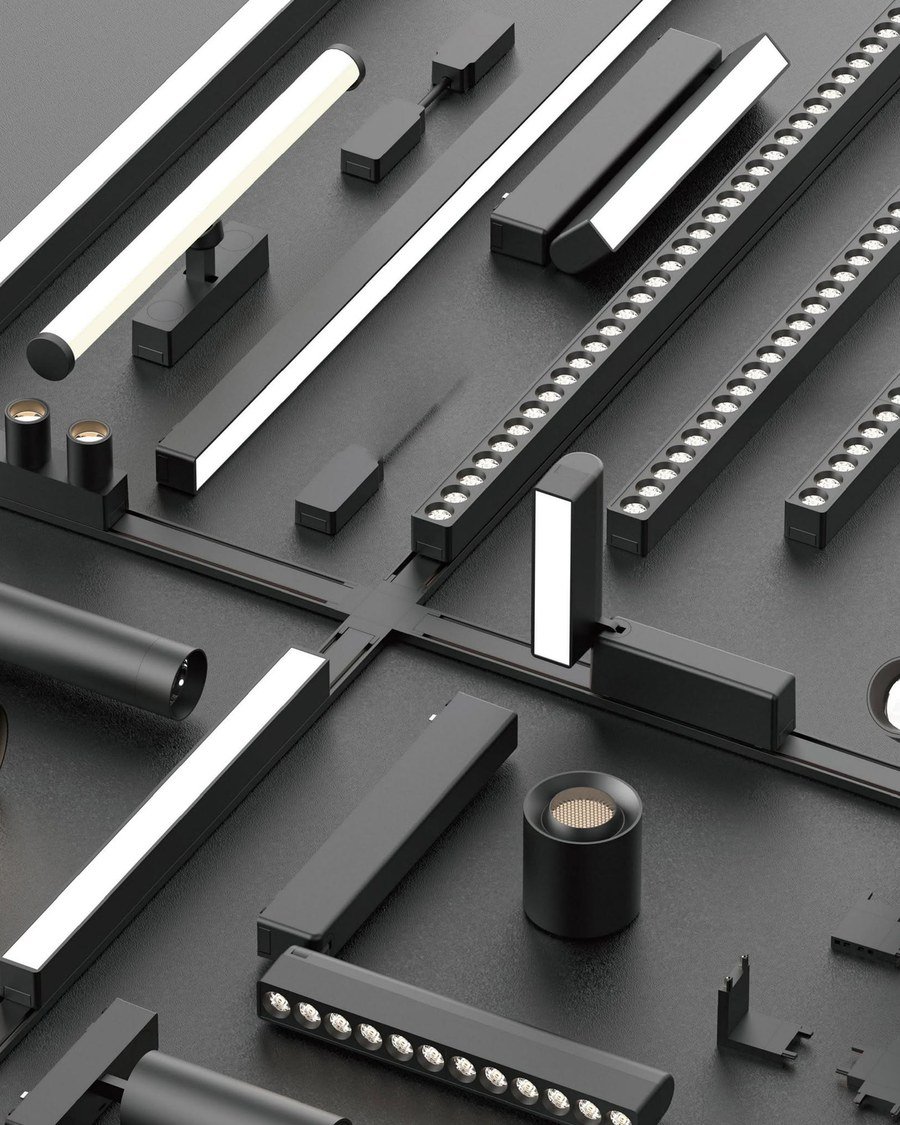

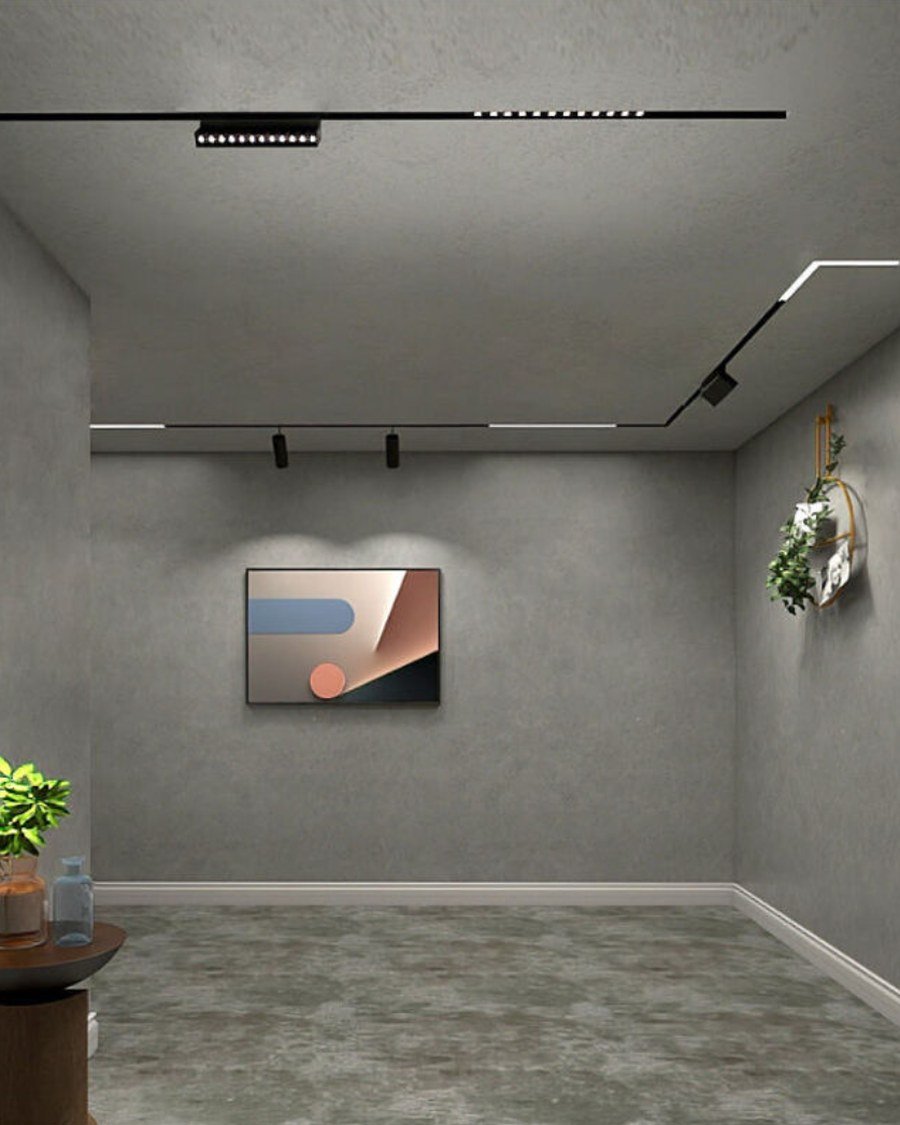

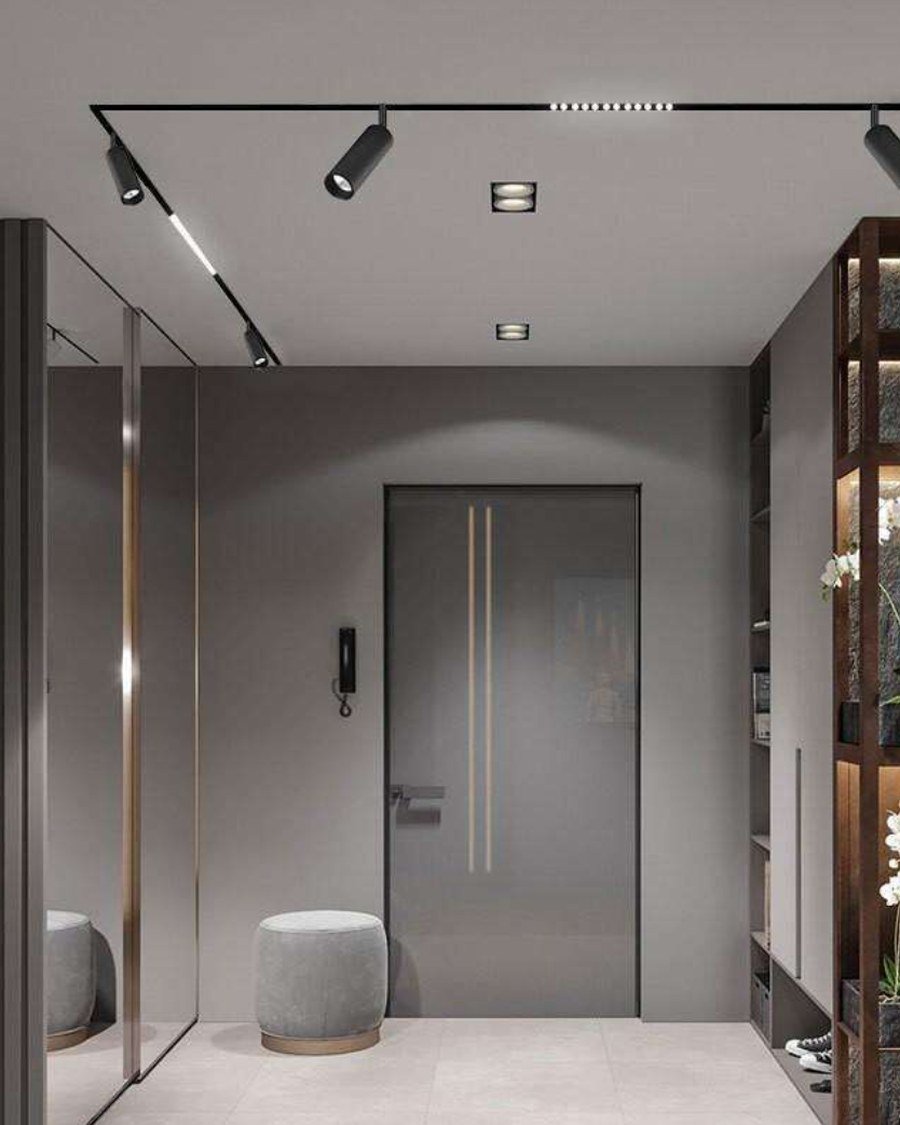

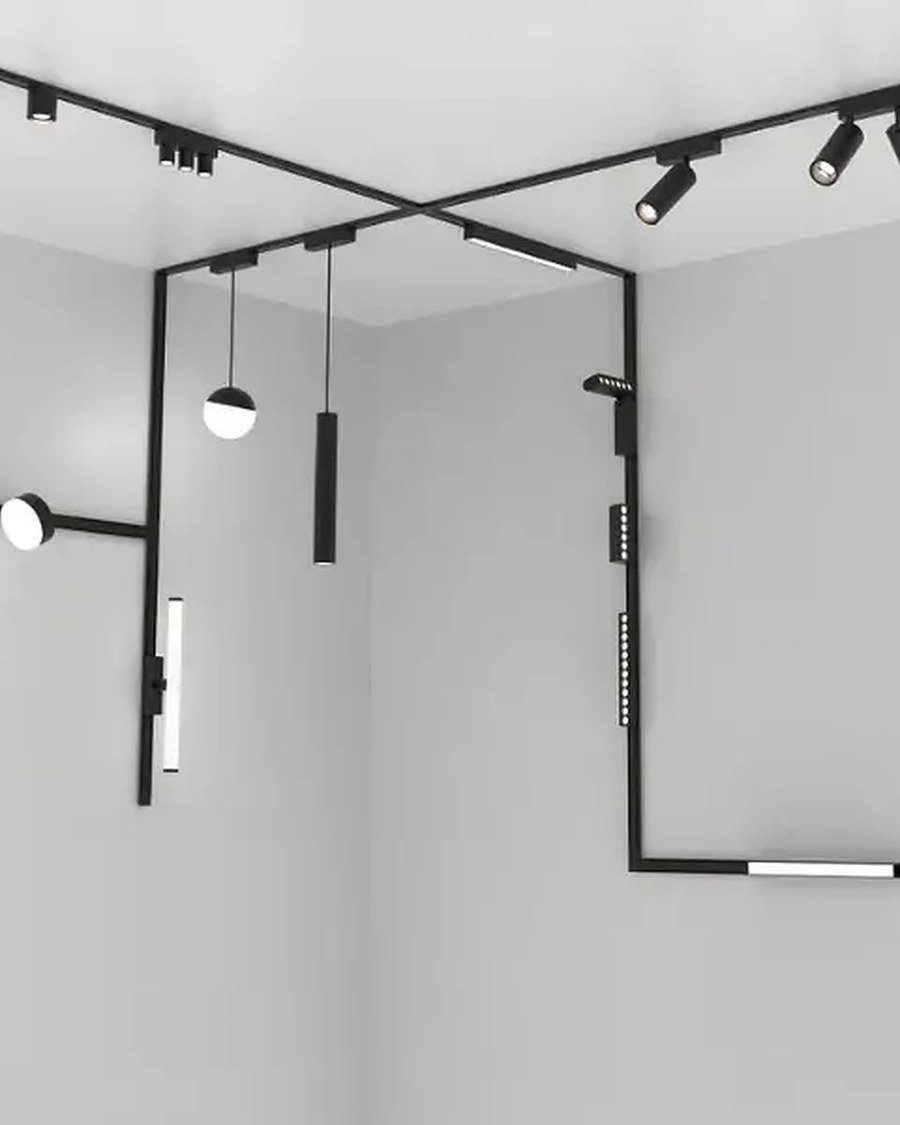

Ultra-slim surface rail AVH-MT11 THE RAILAVH-MT11 Ultra-slim surface rail 8 mm thin. Screws to any finished ceiling.  Black, white to confirm View model Track spot 80 AVH-MT12 AVH-MT12 Track spot 80 The accent light. Turns 350°, tilts 90°.  White or black View model Mini spot 55 AVH-MT13 AVH-MT13 Mini spot 55 A 55 mm spot for art, shelves and counters.  White or black View model Linear diffuser 257 AVH-MT14 AVH-MT14 Linear diffuser 257 A soft 120° wash. The general light on the rail.  White or black View model Grille linear 131 AVH-MT15 AVH-MT15 Grille linear 131 Narrow lenses: light on the table, not in the eyes.  White or black View model Folding grille 127 AVH-MT16 AVH-MT16 Folding grille 127 On a hinge: flat for the floor, folded to wash a wall.  White or black View model Track pendant 45 AVH-MT17 AVH-MT17 Track pendant 45 Hangs from the rail on an adjustable cable.  White or black View model
HOW IT WORKS

One rail. Any light. Move it.

24 V on the rail

Low voltage on the rail; one driver per run, hidden above the ceiling.

Held by magnet

Lift, move, add. No tools, and no electrician for a change after move-in.

Two rails, one family

Recessed trimless where the ceiling is new; ultra-slim surface where it is already finished. The same fixtures on both.

PLAN YOUR LAYOUT

Six shapes cover most rooms

Each starts as one rail and one driver; corners and crossings are plug-in parts. One driver per run: a 100 W driver carries fixtures up to 100 W in total, a 200 W driver up to 200 W.

Parallel linesTwo or three rails side by side across a living room or office ceiling. Even light, spots where the art is.
TOne rail along the corridor, one branch into the room. The three-direction module makes the join.
Full loopA rectangle around the ceiling edge. Light from four sides, pendants on the long run over the table.
LAlong two walls of a kitchen: linears over the counter, spots at the island corner.
Double LTwo L shapes facing each other, a gap between. Reads as a frame around the room without closing it.
UThree sides of the ceiling, open at the window wall. Good for a model suite where the view stays clear.

SpotLinearPendantDriver feed

APPLICATIONS

Where developers use it

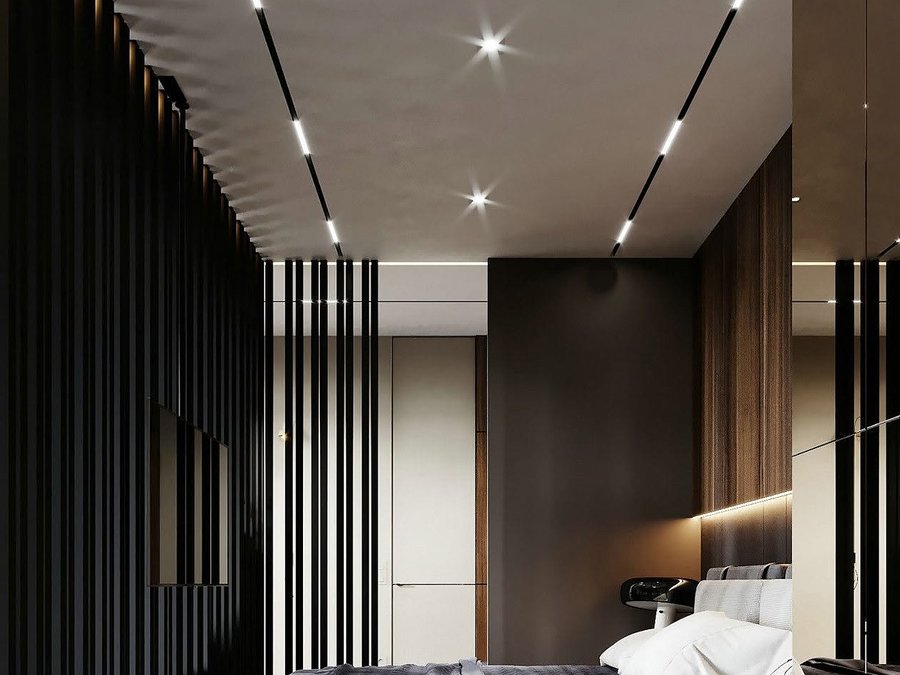

Bedroom: A trimless line over the bed, spots on the wardrobe wall.BedroomA trimless line over the bed, spots on the wardrobe wall.

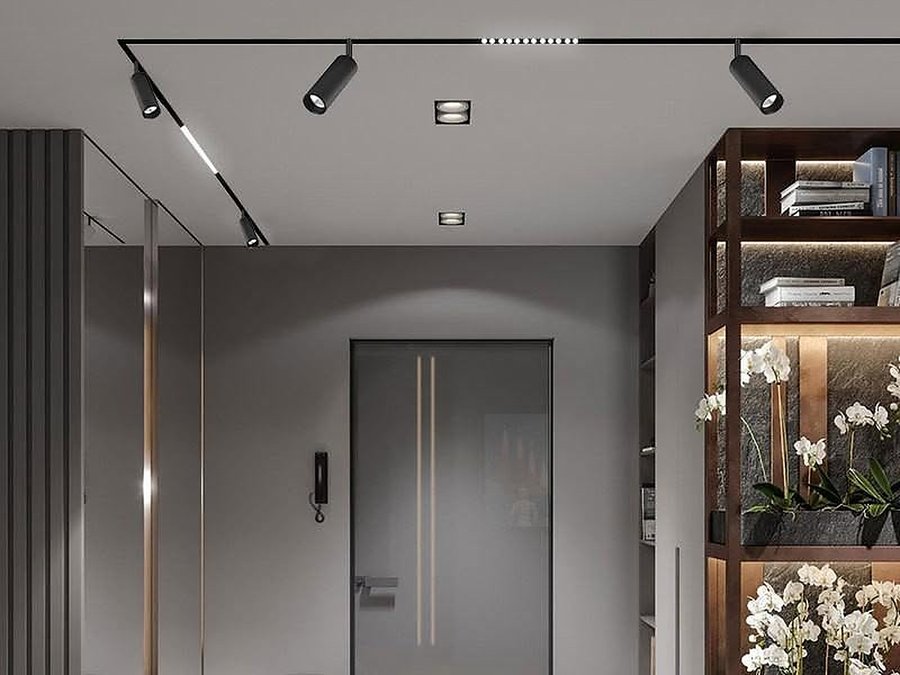

Corridor: One recessed line with small spots: no glare, nothing to bump.CorridorOne recessed line with small spots: no glare, nothing to bump.

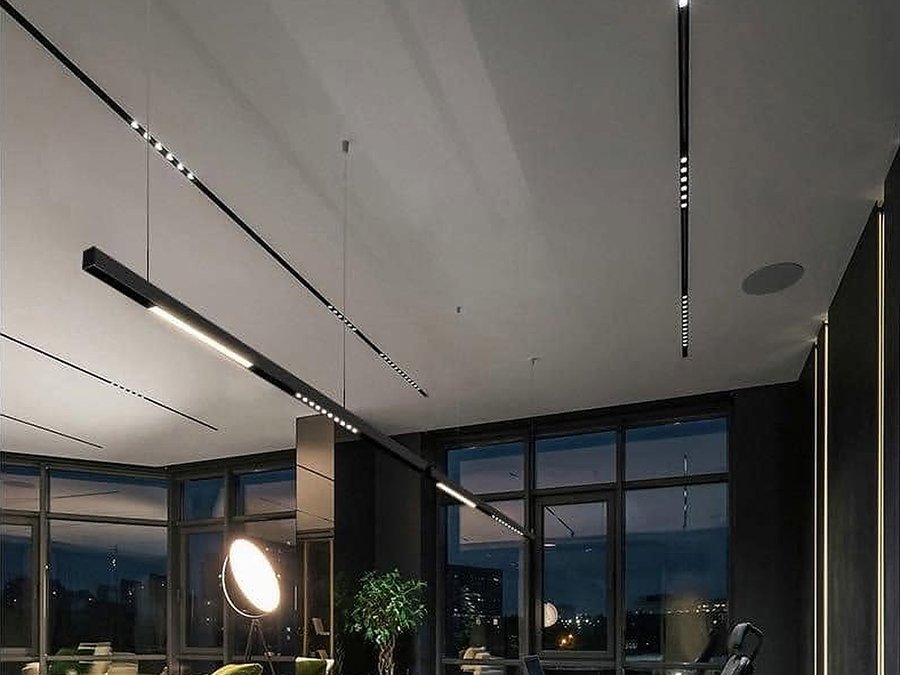

Dining / office: Grille linears for the table, pendants where the plan needs them.Dining / officeGrille linears for the table, pendants where the plan needs them.

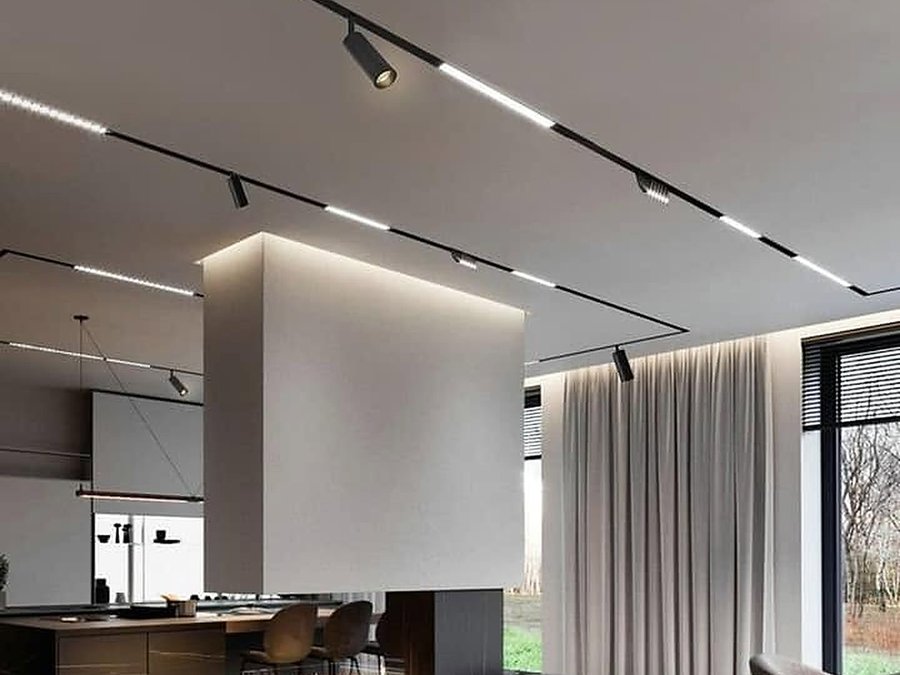

Living room: A loop around the ceiling, spots aimed at the fireplace wall.Living roomA loop around the ceiling, spots aimed at the fireplace wall.

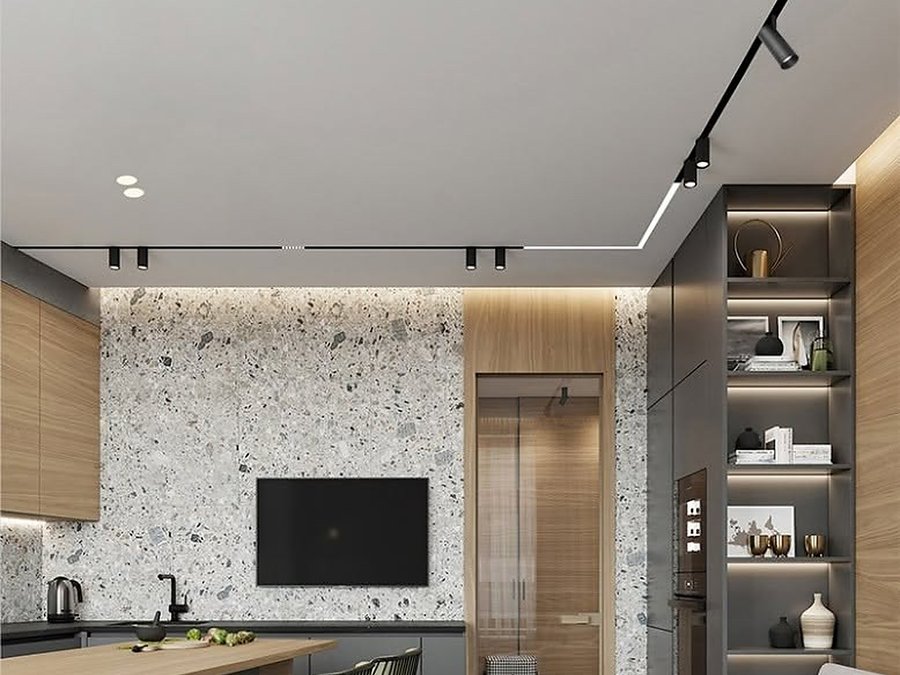

Kitchen / living: An L along the counter, spots at the island corner.Kitchen / livingAn L along the counter, spots at the island corner.

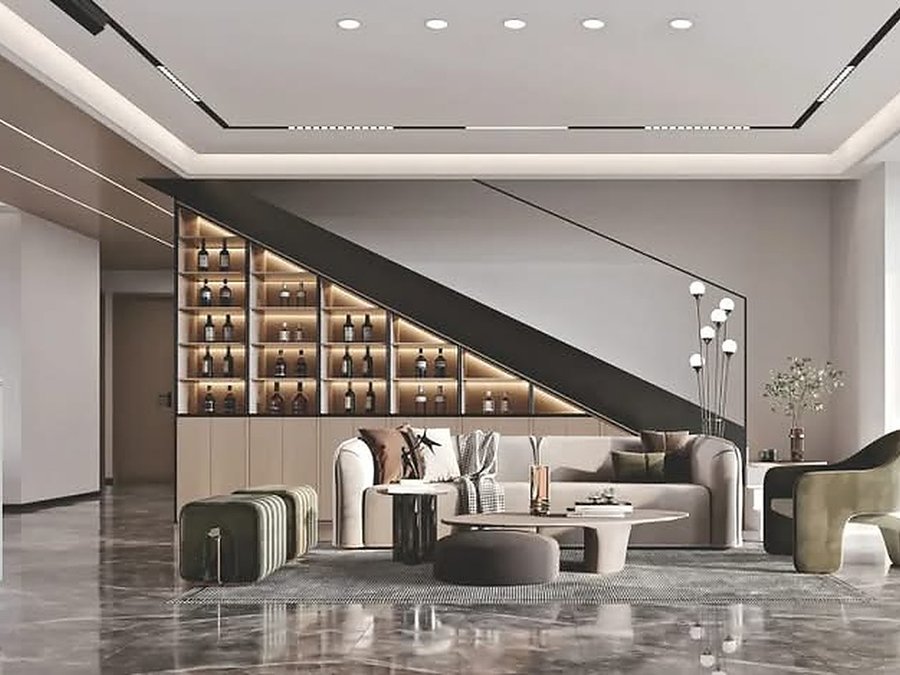

Lobby / stair: Parallel recessed lines for the walk, spots for the desk and art.Lobby / stairParallel recessed lines for the walk, spots for the desk and art.
THE GRF STANDARD

Why it is GRF

Green

24 V DC on the rail. LED fixtures at 60 lm/W and CRI 90 (maker’s figures). The driver dims 10–100 %, so the light is only what the room needs.

Resilient

An aluminum rail that outlives the fit-out. Fixtures rated 50,000 h (maker’s figure). Swap fixtures, keep the rail.

Fast

One cut-in for the rail, one driver per run, fixtures snap on in seconds. Layout changes after move-in take no trades.

THE LIGHTING PACK

Pairs with the rest of the ceiling

The track does the accents and the general light. Our cove and strip lines do the glow.
